TSP Heuristics & Metaheuristics

Traveling Salesman Problem – Heuristics & Metaheuristics

This repository contains a Python implementation of multiple heuristic and metaheuristic algorithms for solving the Traveling Salesman Problem (TSP) on Euclidean instances.

The project was developed as part of an Operations Research / Optimization coursework and focuses on constructive heuristics, local search, and metaheuristic improvement strategies.

---

Problem Description

The Traveling Salesman Problem (TSP) aims to find the shortest possible tour that:

• Visits each city exactly once
• Returns to the starting city
• Minimizes the total travel distance

This implementation assumes Euclidean TSP instances, where distances are computed using 2D coordinates.

---

Implemented Methods

Constructive Heuristics

• Nearest Neighbor (NN)
• Outlier Insertion (Deterministic)

Metaheuristics

• GRASP (Greedy Randomized Adaptive Search Procedure)
  • Insertion-based construction
  • Restricted Candidate Lists (RCL)
  • Both quality-based (α) and top-k RCL variants

Local Search

• 2-opt
  • First-improvement
  • Best-improvement
  • Sampled and k-nearest-neighbor accelerated variants

Hybrid Approaches

• GRASP + 2-opt
• Iterated Local Search (ILS)

Simulated Annealing (SA) was also tested experimentally but is not used in the final workflow.

---

Repository Structure

.
├── main.py
├── README.md
├── Instances/
│   └── Small/
│       └── berlin52.tsp
│       └── kroA100.tsp
│       └── lin105.tsp
│       └── pr76.tsp
│       └── ulysses22.tsp
│   └── Medium/
│       └── a280.tsp
│       └── rat195.tsp
│       └── st70.tsp
│   └── Large/
│       └── d1291.tsp
│       └── pr1002.tsp
├── outputs/
│   ├── before_vs_after_grasp+2opt_costs.png
│   └── grasp+2opt_tour.png
│   └── outlier_insertion_tour.png
└── report/
    └── tsp_report.pdf

Requirements

• Python 3.x
• numpy
• matplotlib

How to Run

1.Clone the repository or download it as a ZIP file 2. Place the desired .tsp instance file under the Instances/ directory 3.Run:

python main.py

The instance file is specified directly in the script:

instFilename = "Instances/Small/berlin52.tsp"

Output

The script produces:

• Console output with feasibility checks and tour costs
• Visual plots of:

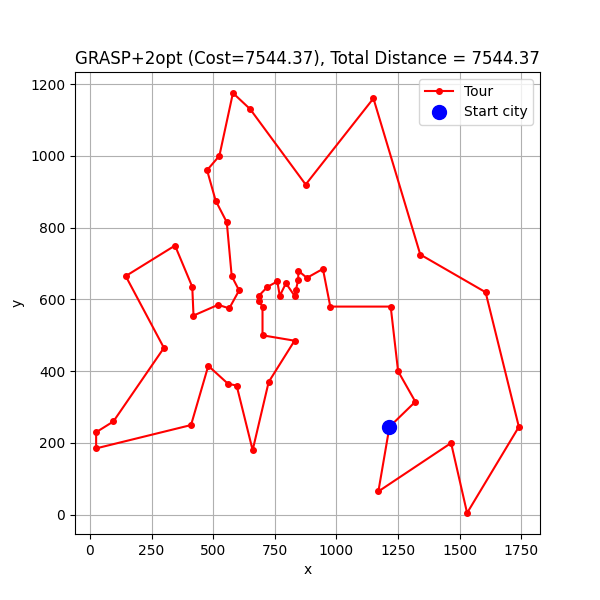

  • Constructed tours

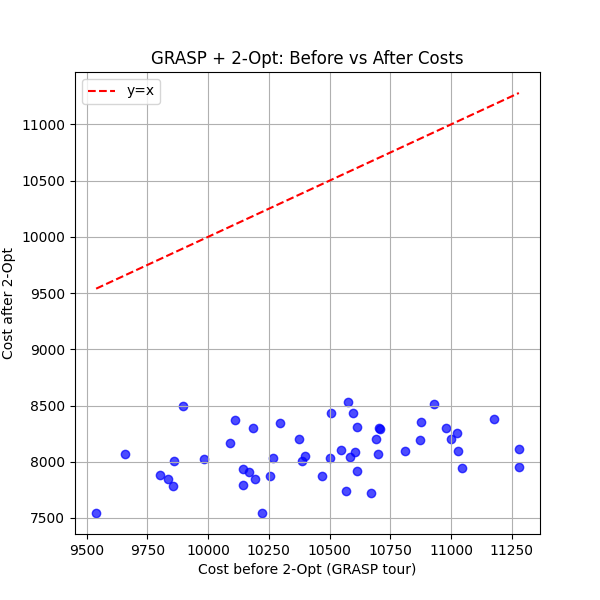

  • GRASP vs 2-opt improvement comparison
• Summary statistics for Nearest Neighbor runs from all starting cities
